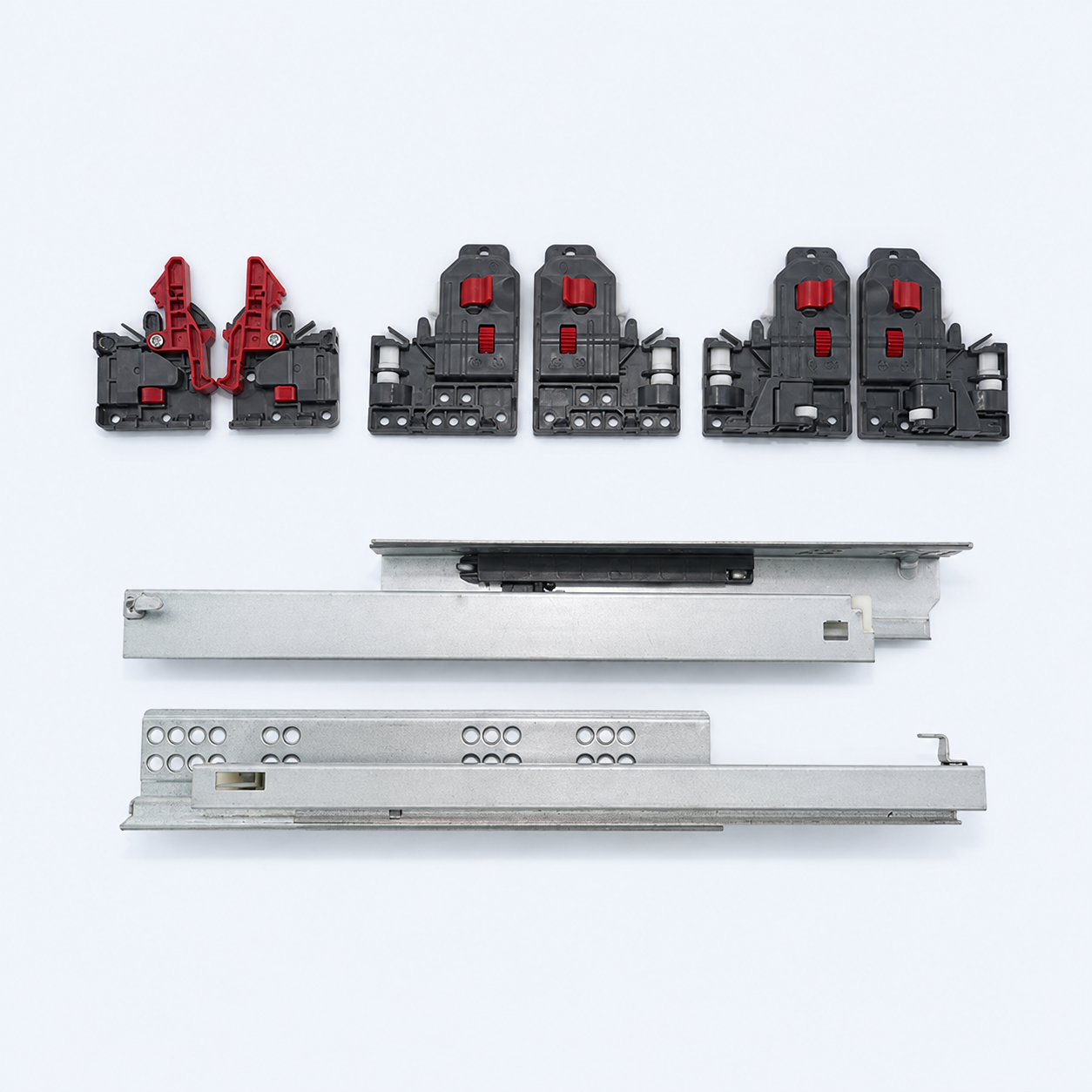

3-section push-to-open undermount slide — locking-device version
A 3-section push-to-open undermount slide with a choice of locking devices.
High-resolution imageProduct specifications
Reference configurations to help select the right product for your project.
- Motion
- Push-to-open
- Construction
- 3-section undermount
- Release
- Locking devices · 1D / 2D / 3D options
- Reference thickness
- 1.8 / 1.5 / 1.0 mm
- Panel options
- 16 / 18 mm
- Length options
- 250 / 270 / 300 / 350 / 400 / 450 / 500 / 550 / 600 mm
- Load capacity
- 35 kg
- Cycle reference
- 50,000 cycles
Confirm final dimensions, gauge, finish and installation compatibility against your project drawings before quotation.
