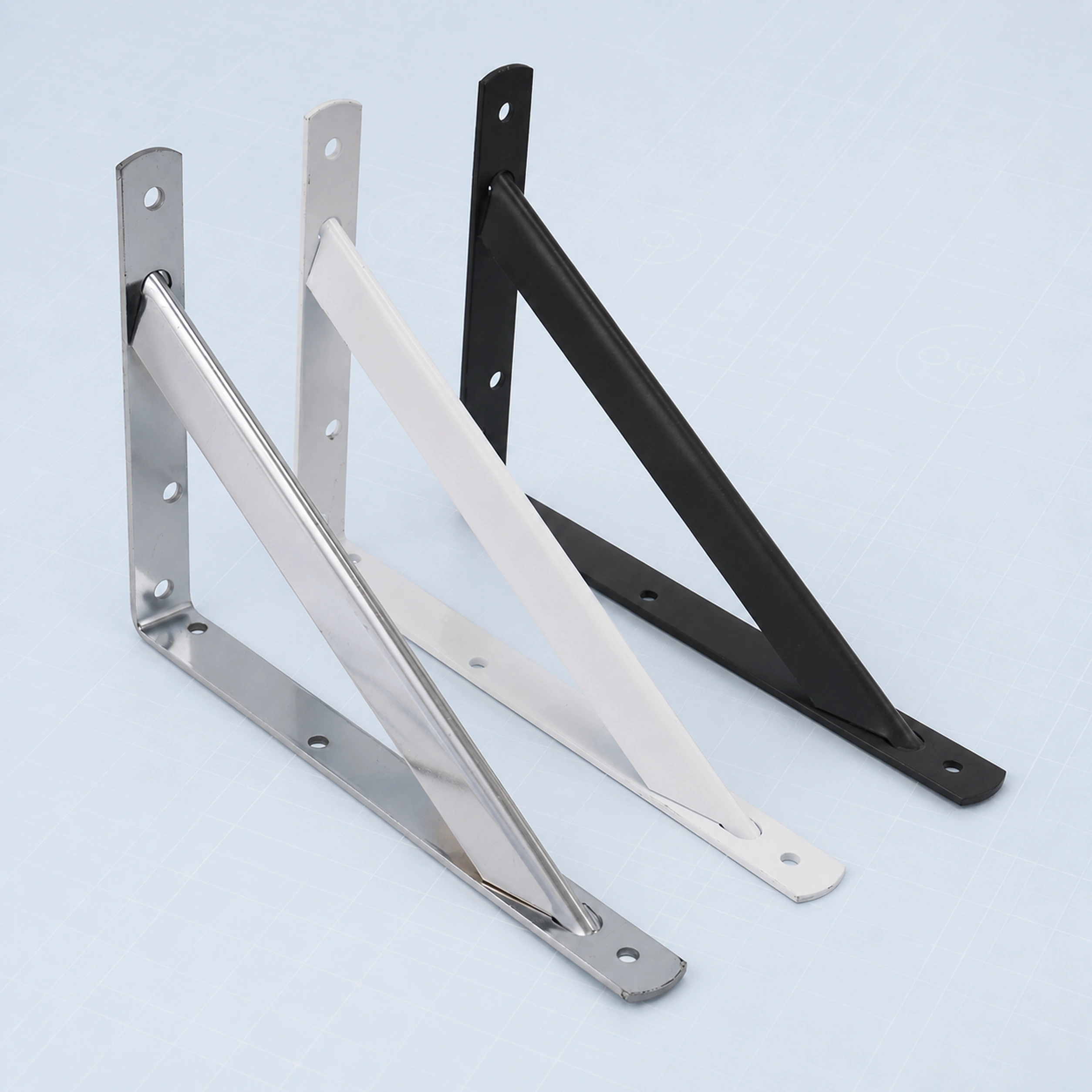

Flat-bar shelf bracket
A broad flat-bar bracket platform spanning six structural families and compact-to-large shelf depths.
High-resolution imageProduct specifications
Reference configurations to help select the right product for your project.
- Reference series
- BB22A / BB22B / BB22C / BB22D / BB22F / BB22G
- BB22A options
- 150×100×16 / 200×120×16 / 250×160×16 / 300×190×16 / 400×250×16 / 500×300×16 mm · 2.0 or 3.0 mm
- BB22B options
- 200×120×25 / 250×160×25 / 300×190×25 / 350×220×25 / 400×250×25 / 500×300×25 / 500×330×25 mm · 3.0 mm
- BB22C options
- 125×150×30 / 250×200×30 / 300×200×30 / 300×250×30 / 400×250×30 / 500×330×30 / 600×400×30 mm · 4.0 mm
- BB22D options
- 200×150×20 / 250×200×20 / 300×250×20 / 350×300×20 / 400×350×20 / 450×400×20 mm · 4.0 mm
- BB22F options
- 200×125×30 / 250×150×30 / 300×210×30 / 400×270×30 / 500×330×30 mm · 4.0 mm
- BB22G options
- 150×125×20 / 250×150×30 / 250×200×30 / 300×200×30 / 400×280×30 / 500×330×30 mm · 4.0 mm
Confirm final dimensions, gauge, finish and installation compatibility against your project drawings before quotation.
A considered fit for your project.
Share your required dimensions, finish and order quantity.
