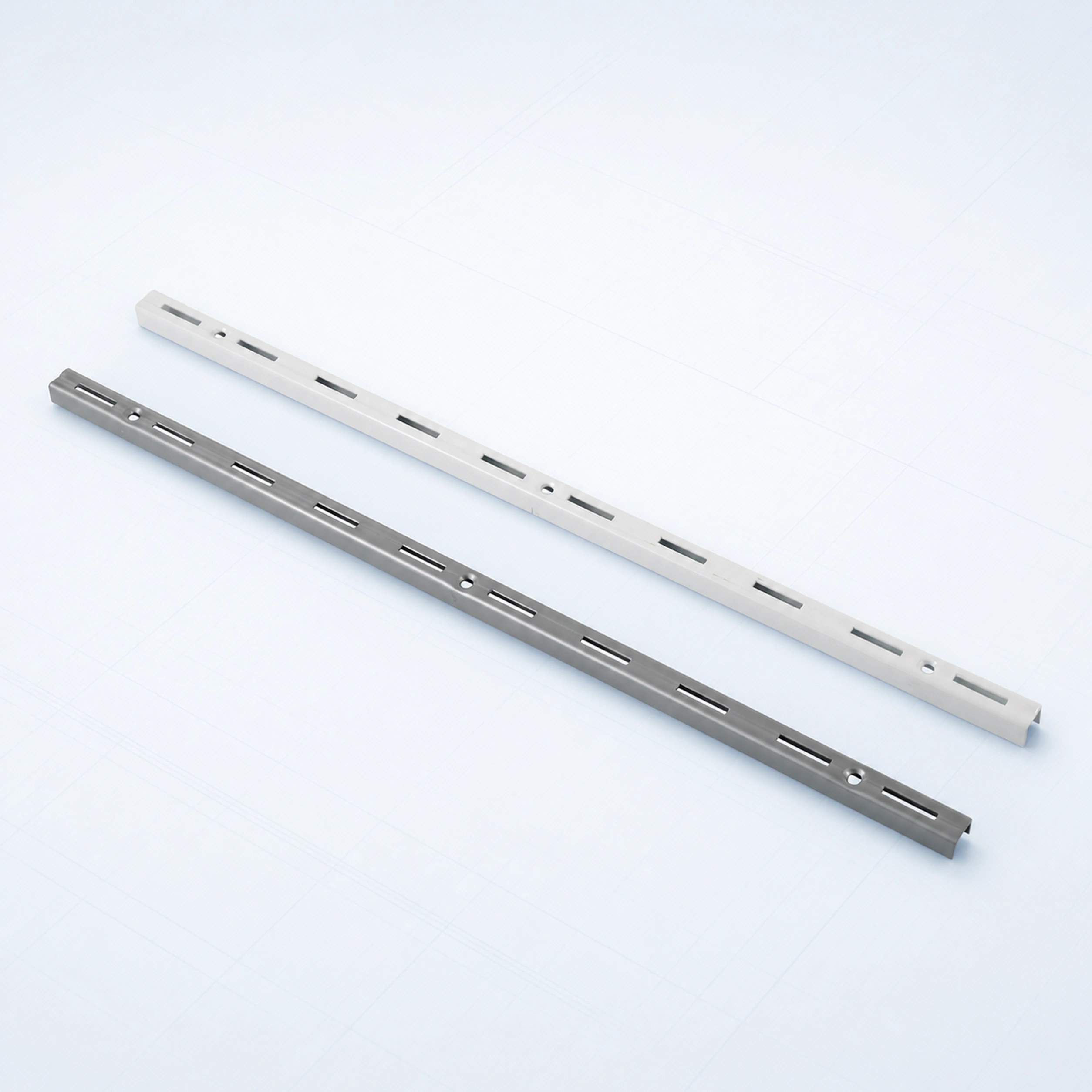

Wall track system
A modular wall-track range combining single- or double-slot rails with matching support arms.
High-resolution imageProduct specifications
Reference configurations to help select the right product for your project.
- Track series
- CA01A single-slot · CC02A double-slot
- Track lengths
- 500 / 1000 / 1500 / 2000 / 2200 / 2500 mm
- Track section
- CA01A: 1.6 × 16.5 × 12 mm · CC02A: 1.6 × 25.5 × 12.5 mm
- Support arms
- CB01B single-slot: 150 / 200 / 250 / 300 / 350 / 400 / 500 / 600 mm
- Double-slot arms
- CD02B: 120 / 170 / 220 / 270 / 320 / 370 / 470 mm · 1.2 mm thickness
Confirm final dimensions, gauge, finish and installation compatibility against your project drawings before quotation.
A considered fit for your project.
Share your required dimensions, finish and order quantity.
